HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

Name: HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
Brand: HAAKE
Price: 1 USD

Cheap HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587 for sale

Model Number : HAAKE

Brand Name : HAAKE

Place of Origin : Guangdong, China

MOQ : 1

Viscosity Range : 0.5 - 100000 mPas

Temperature Range : -1°C to +26°C

Repeatability : < 0.5 %

Analogue Accuracy : < 1 %

Material : Borosilicate glass, Nickel-iron alloys

Operating Temperature : 0℃~50℃

Rotor Speed : 6 RPM

Power Type : Electronic

Measurement Principle : Falling ball timing

Drop Tube Material : Borosilicate glass

Ball Material : Borosilicate glass, Nickel-iron alloys

Optional Accessories : Stopwatch, G balls, PT100 sensor

Measurement Units : mPas (dynamic viscosity)

Compliance Standards : DIN 53015, ISO120587

Repeatability Test : ±1%

Contact Now

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

Product Overview

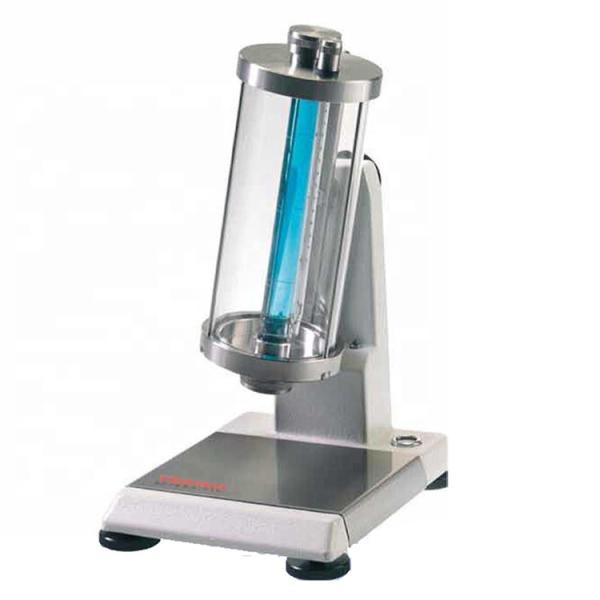

The HAAKE falling ball viscometer C is an instrument for quasi-accurate measurement of the viscosity of transparent Newtonian fluids and gases. It meets the German DIN 53015 and ISO120587 standards, and can be used as an official reference instrument. With the support of the accurate temperature control system of the circulator, its measurement accuracy is among the best among all viscometers.

Use Industries

Chemical industry (polymer solutions, solvents, inks)
Pharmaceutical industry (raw material, glycerin)
Food industry (gels, sugar solutions)
Mineral oil industry (oil, liquid carbon hydration compound)

Principle of Measurement

The roll of the ball in the sample liquid is timed in an inclined cylindrical measuring tube. The viscosity of the sample is related to the time it takes the ball to travel a certain distance. Turn the measuring tube over to make another measurement. Test results are given in mPas units of dynamic viscosity as specified in the international standard.

Specifications

Parameter	Specification
Viscosity Range (mPas)	0.5 - 100000
Temperature Range	-1°C to +26°C
Repeatability	< 0.5 %
Analogue	< 1 %
Material	Drop tube, ball 1,2 and G borosilicate glass Balls: 3,4,5 and 6 nickel-iron alloys
Optional accessories	A stopwatch G balls are used for gas measurements Temperature sensor of pt100 for drop ball -D50 circulator
