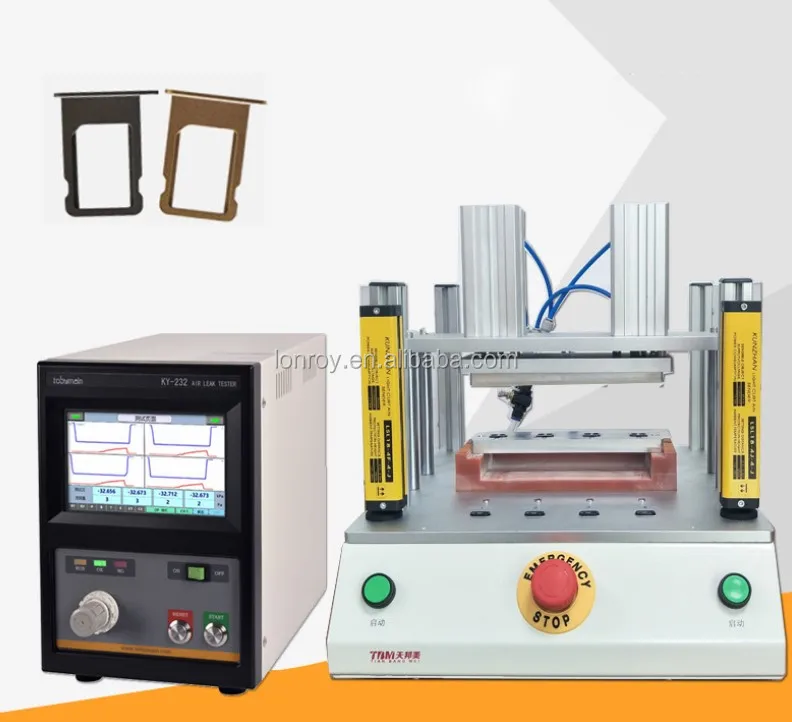

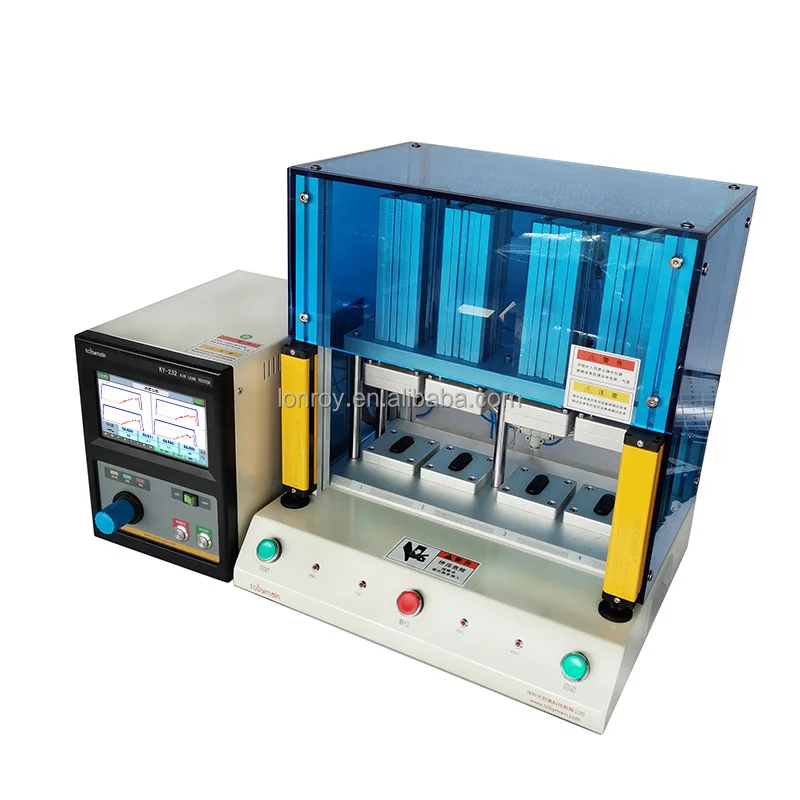

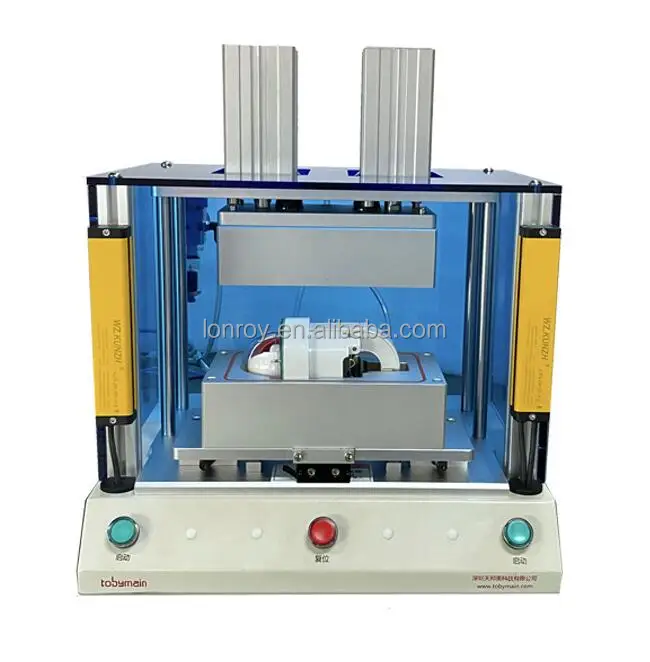

LR232-4P series4 channel air-tightness detectoradopts the principle of direct pressure and uses air as the medium to pick up the leakage of the product. It is a non-destructive testing instrument.The working principle is to inflate the test product to the specified air pressure, then close the valve, after a period of stability, measure the change of air pressure during the test period, calculate the leakage through conversion.With its high precision and complete function, this instrument is widely used in sealing testing of open products or parts of closed products.
Functional features
l 7 inch touch screen display, Chinese and English language switch.
l High resolution 24-bit pressure AD converter.
l Large leakage, small leakage 2 alarm functions.
l OK,NG computing function.
l The XY axis curve shows the recording of test pressure and leakage.
l Test pressure units KPa, mbar, Psi, KGF /cm2,inn hg,mm hg
l Leakage unit Kpa,ml/min
l 8 sets of channel parameters save, can be external toggle program
l Usb disk history storage, query, print, delete, screenshot
l PLC input and output I/O interface, can connect automatic equipment
l Volume measurement of test products (optional)
l RS485 communication interface (optional)
l Barcode scanner interface (optional)
l Microprinter interface (optional)
Application fields
l Automotive industry: lamp waterproof test, engine air tightness test, camera air tightness test, charging pile, charging gun waterproof test, etc
l Battery industry: lithium battery, air tightness test of the outer case, sealing test of junction posts and outer cases, battery pack, battery air tightness test, etc
l Home appliance industry: coffee machine, juicer, blender, kettle, water purifier, soybean milk machine, etc
l Smart wear: smart bracelet waterproof detection, smart watch waterproof detection, underwater alarm seal detection, air tightness testing and other fields
l Electronic consumption: sports audio, bluetooth speaker, earphone, electric toothbrush waterproof test, mobile phone waterproof test, seal test, etc walkie-talkie waterproof detection, hand-held walkie-talkie, vehicular walkie-talkie, three - defense mobile phones, radar waterproof detection and other fields
l Valve pipe: valve air tightness, pipeline permeability, joint seal test, water meter seal test, throttle valve, shunt valve and other sealing
l Security products: security camera waterproof test, smart home, street lamp, LED lamp, etc. Sealing test, air tightness test
Technical Specification
Model
KY-232-4CV
Negative pressure/opening and sealing mode
KY-232-4CP
Positive pressure/opening and sealing mode
KY-232-4V
Negative pressure/opening mode
KY-232-4P
Positive pressure/opening mode
Test pressure
-85~-1kpa(optional)
1-2000kpa(optional)
-85~1kpa(optional)
1-2000kpa(optional)
Test pressure display
Unit:kpa Display range:±9999.99
Leakage pressure display
Unit:kpa Display range:±9999.99
Time
0.1(S)-1999.0(S) adjustable
Channel
8 group(1-8CH)
IO interface
5 input signals,6 output signals
USB interface
1
RS485interface
1
Printer interface
1
Power
DC24V±5%
Weight
About 8KG
Work Theory
Air tightness detector adopts the principle of direct pressure (pressure attenuation method), and USES air as medium to detect leakage of products. It is a non-destructive testing instrument.The working principle is to inflate the test product to the specified air pressure, and then close the valve. After a period of stability, measure the change of air pressure in the detection period, and calculate the leakage amount through conversion.This instrument is widely used in the sealing test of open or closed parts with high precision and complete functions.
