Introduction

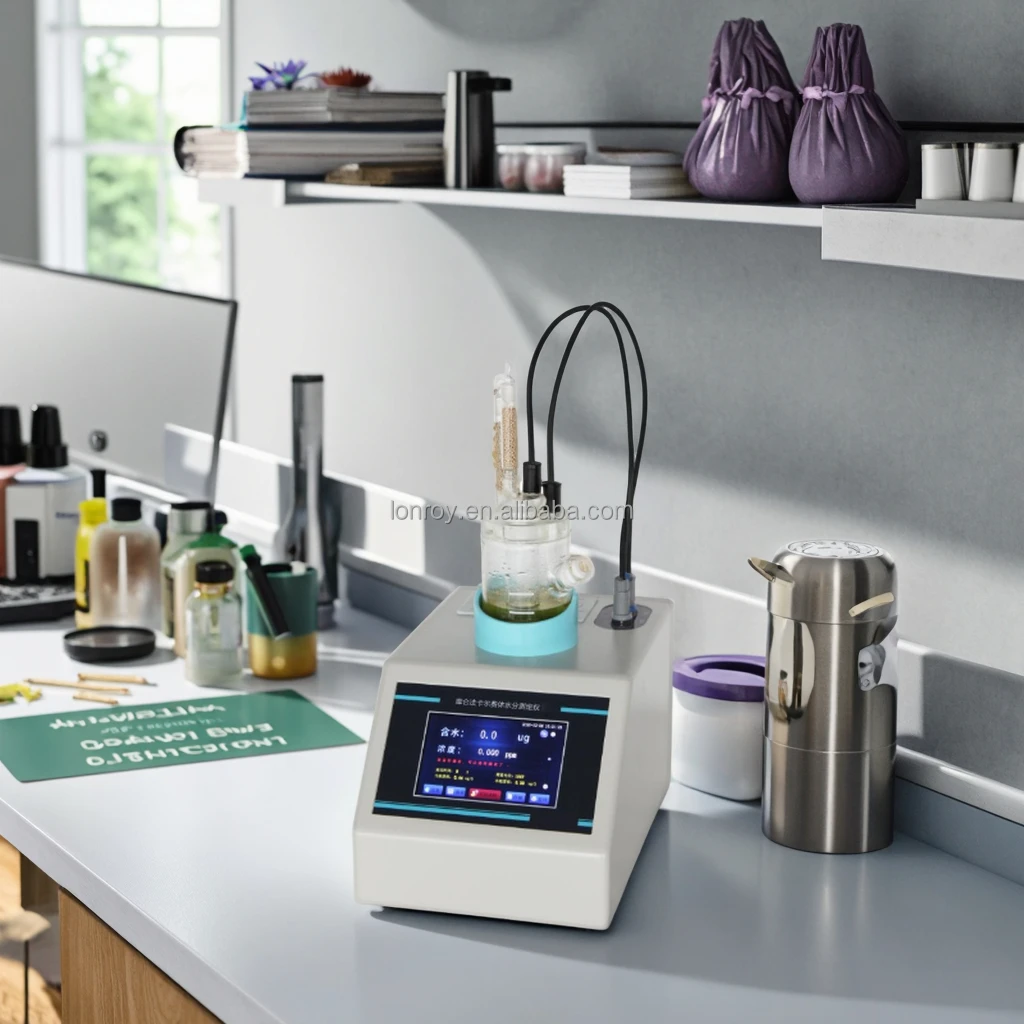

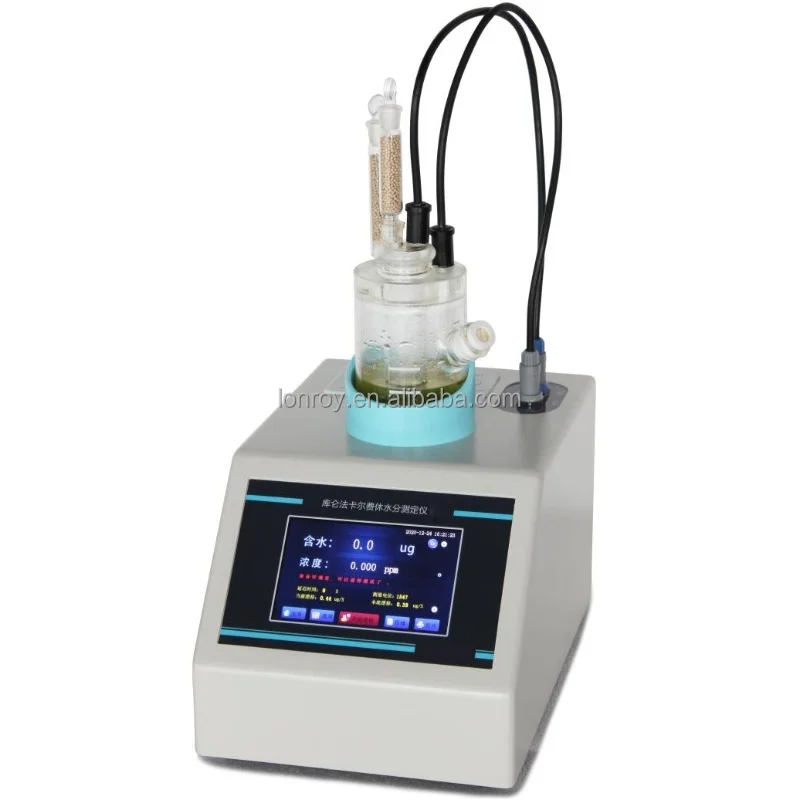

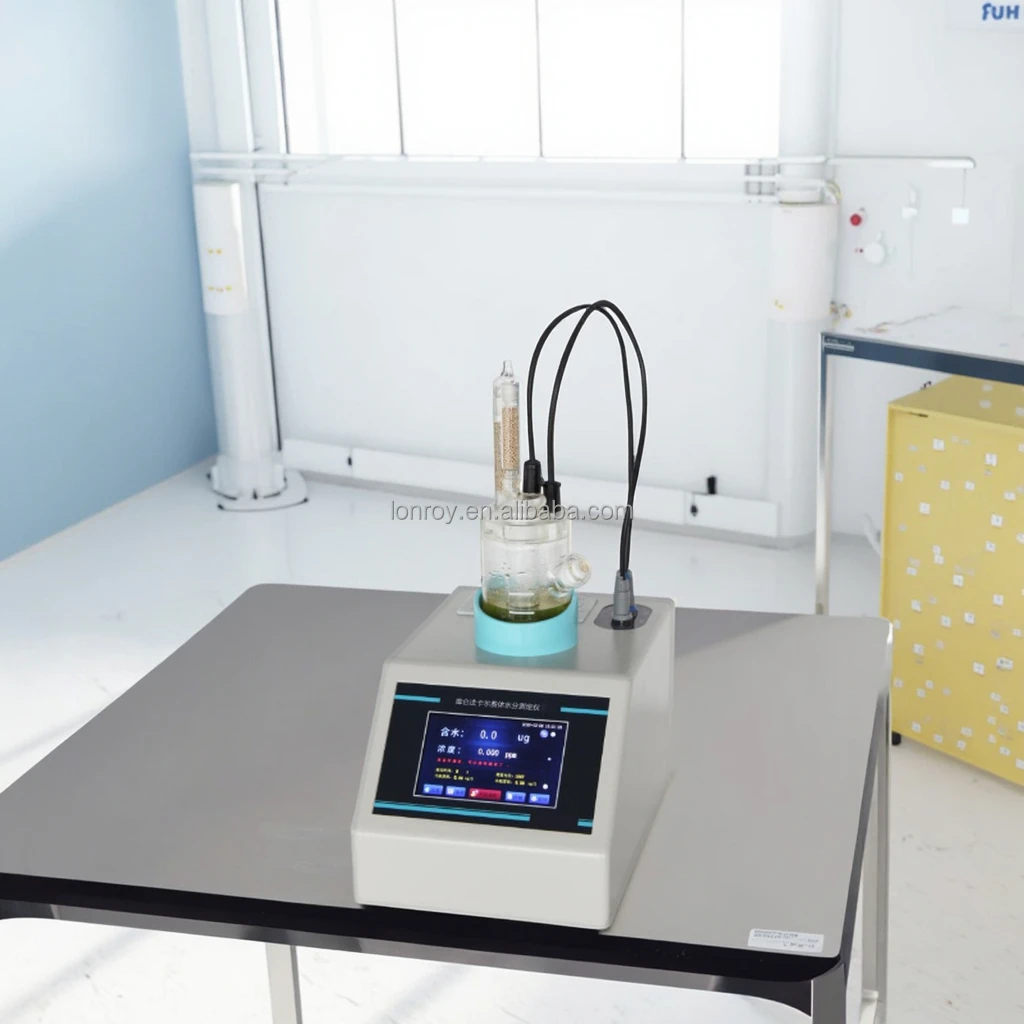

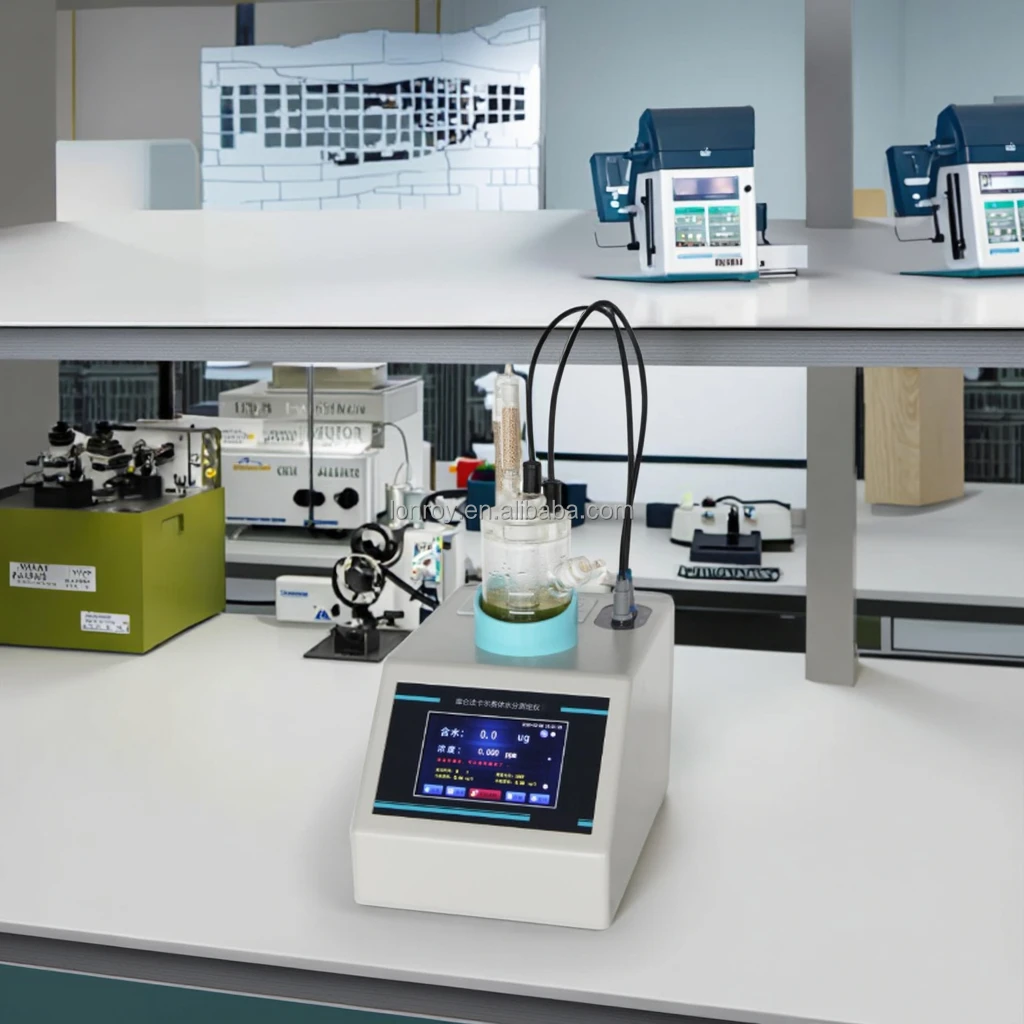

The LR-A354 Karl Fischer Coulometric Moisture Analyzer features a 5.7-inch capacitive high-definition color touch screen. It is as easy to operate as a mobile phone, with a simple and intuitive interface and a navigation-style operation mode, reducing the learning cost and enabling quicker mastery. It is equipped with a unique circuit and program design, offering advantages such as high precision, fast electrolysis speed, short equilibrium time, accurate blank deduction, and reliable and accurate analysis results.
Features and Advantages
1. Unaffected by the environment, automatic drift monitoring
The system automatically detects environmental drift and can precisely and automatically deduct it, ensuring that the moisture detection results are not affected by the environment and stirring speed.
The connection of the Karl Fischer heating furnace can also automatically detect the moisture in the carrier gas and subtract it, further reducing the requirements for the carrier gas and lowering the user's operating costs.
2. Multiple endpoint determination methods, suitable for various reagents.
It is equipped with multiple end-point determination methods: relative drift; relative drift + time; measured potential + relative drift; measured potential + time, etc. These various end-point determination methods allow users to select the appropriate one based on the environment and sample conditions.
The end point is determined by the dynamic drift algorithm, which is not affected by the environment. It can be used with confidence even in high-temperature and high-humidity areas.
The end-point potential can be set, which is suitable for Karl Fischer reagents of different manufacturers and models.
3. The system is equipped with multiple built-in methods, and the result units can be customized.
The system is equipped with 5 built-in methods and 8 formulas, and is suitable for various samples such as solids, liquids and gases.
The measurement results are automatically calculated, including percentages, ppm, mg, etc.; GLP-compliant experimental records, including measurement time, moisture content, percentages, system time, operator, etc.
4. Carefully select various industrial-grade imported components to ensure the reliability of the instrument.
All internal components are made of industrial-grade components imported from major factories, ensuring the stability and reliability of the instrument.
5. Capacitive touch screens make navigation menu operations more convenient.
The instrument adopts a capacitive touch screen, which is different from the traditional resistive touch screen. It is more sensitive to touch and easier to operate.
The navigational menu makes the function options clear at a glance, and the instrument is easy to get started with.
6. Display more comprehensive and intuitive content.
The water content, measurement time, PPM, percentage content, electrolytic current, potential and system time are displayed simultaneously online. The experimental process is clear at a glance, allowing problems to be detected in a timely manner.
7. The electrolytic current can be adjusted steplessly, and the test results can be corrected.
The electrolysis current ranges from 0 to 500 mA and can be customized. The maximum current can reach 500 mA, and the electrolysis rate can reach up to 2.8 mg/min.
The test results can be automatically calibrated by filling in the correction coefficient based on the calibration results.
